Blue Cat Audio Blue Cat FreqAnalystMulti

Blue Cat's FreqAnalyst Multi is a unique multiple tracks real time spectrum analyzer: it lets you visualize the spectral content of several audio tracks on the same screen with extreme smoothness and high resolution, for both time and frequency.

FreqAnalyst Multi is the ideal solution for mixing: you can use it as a frequency overlap detector and actually see which part of the spectrum every single instrument uses. It is now also possible to easily compare the spectrum of several instances (for EQ matching or response curve measurement) thanks to the new 'Diff' view which displays the difference between several curves.

Just like with Blue Cat's FreqAnalyst Pro plug-in, the frequency analysis can be fine tuned in details, and three modes are offered for each channel: instant, peak or average response of several audio tracks can be displayed on the same graph (the plugin supports up to 16 curves). Zooming capabilities and coordinates display let you exactly measure the characteristics of the spectrum for each audio track. Thanks to the advanced routing capabilities you can define different settings for each track and thus adapt the analysis for each audio signal you want to analyze. Our multiple tracks tutorial shows you how simple multiple tracks spectrum analysis can be.

The four memory slots let you store any curve in memory: it helps you make comparisons between several setups or portions of your audio project very easily.

Thanks to included window opacity management feature and advanced layout customization capabilities, you can adapt the plug-in user interface to your personal needs and enhance your workflow. It is also possible to create a completely custom user interface using Blue Cat's skinning language.

If you are looking for a single track spectrum analyzer with a spectrogram view and audio to MIDI capabilities, check our Blue Cat's FreqAnalyst Pro plug-in.

Blue Cat Audio Standards:

• Available in most plug-in formats for Mac and Windows.
• Full MIDI control and automation support, MIDI Learn.
• No CPU load on idle: processing shuts down when fed with silence (optimal CPU usage).
• Customizable user interface with transparency & zoom.
• Smooth Bypass: noiseless plug-in activation / deactivation.
• Undo/Redo.
• Full featured integrated presets manager.
• Copy/paste the state of the plug-in between instances.
• Any sample rate supported.

Version 2.41

• Added Apple Silicon support for AAX Plug-in Format.
• Fixed VST3 version not always loading properly in Ableton Live 11.
• Improved VST parameter value display in some host applications.
• Added an option in global & preset input settings to send MIDI events when MIDI-enabled parameters are modified in the plug-in (to update control surfaces accordingly).
• Improved undo management and automation when using the mouse wheel to move knobs.
• AAX: Fixed erratic mouse behavior in Pro Tools on Mac.
• Mac: installers and plug-ins have been notarized to avoid security warnings on Mac OS Catalina and newer.

Features:

1. Mono, stereo or mid/side multiple tracks real time spectrum analyzer: visualize and compare the spectrum of several audio tracks on the same screen.

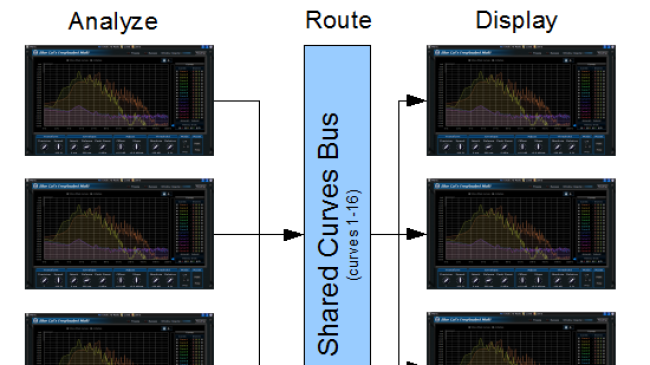

2. Unique data sharing technology with multi-core processors support.

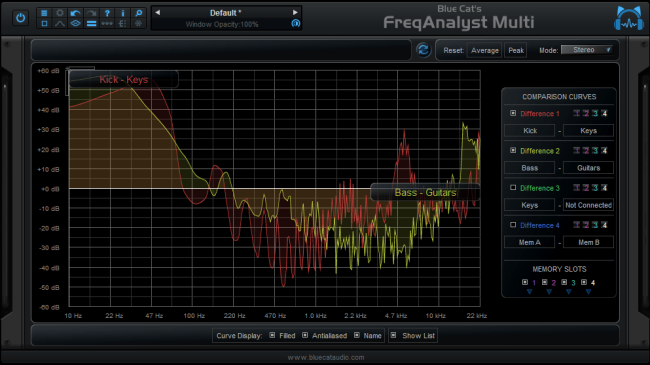

3. Compute and display the difference between spectra for easy EQ matching and response curve measurement.
4. Total control over the analysis parameters, with slope and offset correction.
5. Smart interpolation algorithm for extreme display smoothness.
6. Spectrum view with zooming and precise measurement capabilities as well as note info display.
7. Multiple display sizes
8. Instant, peak and average curves display for each track.
9. Choose a name for each curve for easier sharing.
10. Save the curves for easy A/B comparison.
11. Opacity control for the user interface.
12. Custom absolute and relative threshold control.

Requirements:

• mac
  • cpu: An Intel or Apple Silicon processor.
  • ram:0
  • disk:0
  • version:Mac OS 10.9 or newer.
  • plugins:
    • VST-2
    • VST-3
    • AU
    • AAX
• windows
  • cpu: An SSE2-enabled processor (Pentium 4 or newer).
  • ram:0
  • disk:0
  • version:Windows 7, 8 or 10.
  • support:
    • 32_bit
    • 64_bit
  • plugins:
    • VST-2
    • VST-3
    • AAX
